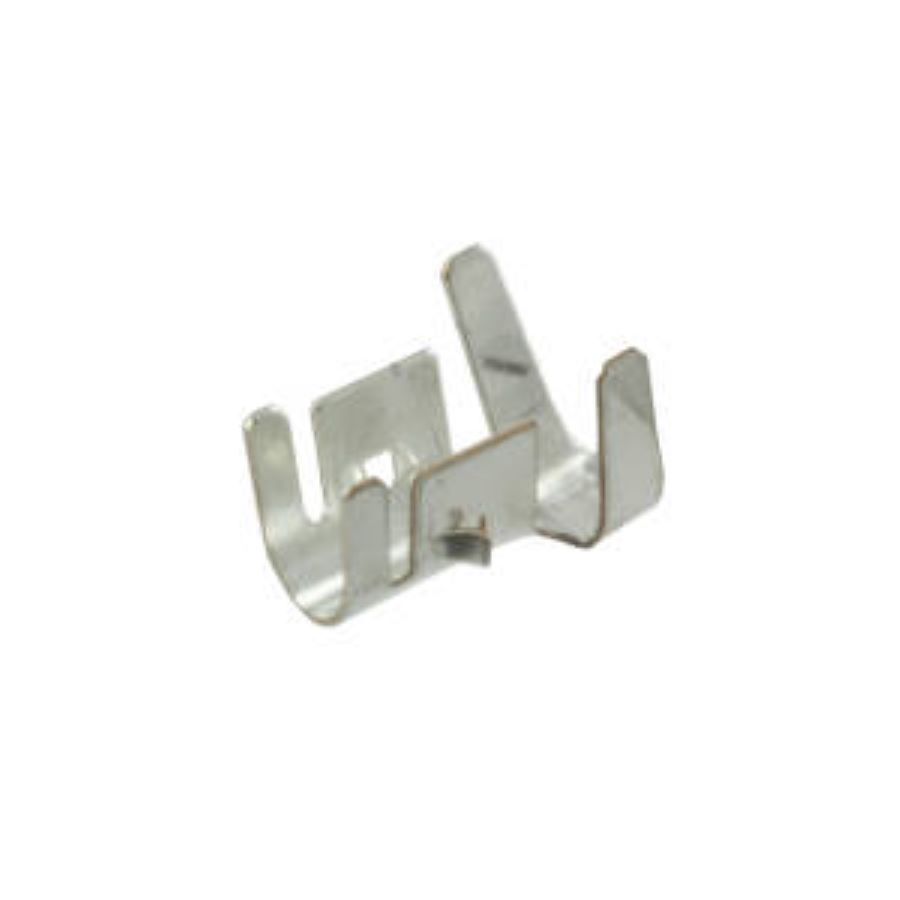

3-770060-1
Manufacturer:
TE Connectivity
Mfr.Part #:
3-770060-1
Datasheet:
Description:
Terminals Cable 18 AWG Female
| Parameter | Value |
|---|---|
| Length | 7.493 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 6.6 mm |
| Material | Bronze |
| Packaging | Reel |
| Depth | 4.7 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Max Current Rating | 10 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Green |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 1 |
| Terminal Material | Bronze |
| Hole Diameter | 3.18 mm |
| Connector Type | Connector, PCB, Signal |
| Wire/Cable Gauge | 18 AWG |
| Insulation | Non-Insulated |
| Contact Resistance | 3 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Wire Gauge (Max) | 18 AWG |
| Wire Gauge (Min) | 14 AWG |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 3.81 mm |
| PCB Thickness | 1.5748 mm |
| Insulated Wire Support | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
Stock: 33372
Distributors
pcbx
pcbxUnit Price$0.32866
Ext.Price$0.32866
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.32866 | $0.32866 |
| 10 | $0.16433 | $1.64330 |
| 50 | $0.12641 | $6.32050 |
| 100 | $0.09724 | $9.72400 |
| 500 | $0.07480 | $37.40000 |
| 1000 | $0.05754 | $57.54000 |
| 3000 | $0.05754 | $172.62000 |
| 5000 | $0.05430 | $271.50000 |
| 10000 | $0.05125 | $512.50000 |
| 30000 | $0.04837 | $1451.10000 |
| 50000 | $0.04565 | $2282.50000 |
